Types of Industrial Screening Equipment: Vibratory, Rotary & Gyratory
Industrial screening equipment is a critical part of most bulk material handling systems, even though it often gets less attention than grinders, dryers or conveyors. Screens remove oversize material, fines and foreign objects, as well as classify material into multiple size fractions. Nearly every industry that handles granular or particulate solids relies on industrial screening equipment to protect product quality.
Overview of Vibratory, Rotary & Gyratory Screeners
- Vibratory screeners use high-frequency vibration to move and stratify material across a screen surface.
- Rotary (trommel) screeners use a rotating cylindrical drum to tumble material and expose it to the screen.
- Gyratory screeners use a horizontal, circular motion to gently spread material across the screen.
Vibratory Screening Equipment
How Vibratory Screeners Work
Vibratory screeners consist of an inclined or horizontal screen deck mounted on springs or isolators. The deck is vibrated using either a mechanical drive (eccentric weights or shafts) or an electric motor. The vibration causes material to move across the screen while smaller particles fall through the openings.
Most vibratory screeners operate at relatively high frequencies, often in the range of thousands of vibrations per minute. This motion stratifies the material, meaning finer particles work their way downward toward the screen surface while larger particles remain on top and discharge off the end.
Vibratory screeners are commonly built with one, two or more decks. Multiple decks allow the material to be separated into several size fractions in a single pass.
Advantages of Vibratory Screeners
- High throughput and efficiency for continuous bulk processing, especially with higher feed rates.
- Relatively compact, with fewer moving parts, which can mean lower maintenance needs and reduced downtime.
- Good for fine separations and broad material types, improving product quality and yield.
They are also generally less prone to blinding than gyratory screeners, especially when properly selected screen media and vibration parameters are used.
Limitations to Note
Vibratory screeners are not ideal for every application. They can struggle with very wet, sticky or irregularly shaped material. Noise and vibration are also considerations, particularly in indoor installations. From a maintenance standpoint, vibratory equipment requires proper tuning. If the support structure or isolation system is not designed correctly, vibration can transfer into surrounding equipment or structures.
Typical Applications
Vibratory screeners are commonly used in minerals and aggregates, fertilizers and chemicals, food ingredients and powders, animal feed additives and biomass and wood products. They are used for both primary and secondary screening, depending on the application.
Rotary Screening Equipment
How Trommel Screeners Work
Trommel screeners consist of a rotating, perforated cylindrical drum that is slightly inclined. Material enters at the higher end of the drum. As the drum rotates, material is lifted and then dropped, creating a tumbling action. Smaller particles fall through the perforations, while larger material travels to the discharge end.
Some trommels use internal lifters to increase agitation. Others rely on rotation alone. Trommels can be built with uniform perforations or with sections of increasing hole size to separate multiple fractions along the length of the drum.
Advantages of Trommel Screeners
- Good performance with wet, sticky or clumpy material because the rotating drum helps prevent clogging.
- Ability to wash and screen at the same time.
- Lower vibration transmitted to surrounding structures.
- Gentle tumbling action is less likely to damage fragile particles or aggregates.
Trommel screeners are often selected because they tolerate inconsistent feedstock and harsh operating conditions better than other screen types. They are forgiving when material moisture, size distribution or contamination levels fluctuate, which makes them well suited for upstream or rough screening roles.
Limitations to Note
The main drawback of this type of industrial screening equipment is efficiency. Only a portion of the screen surface is active at any given time, which limits capacity. Trommels also tend to have larger footprints than vibratory or gyratory screeners.
Blinding and plugging can also be issues here, especially with small perforations. Trommels also require regular cleaning and inspection. Heavy or hard contaminants can damage the drum if they are not removed upstream.
Typical Applications
Trommel screeners are often used in compost and mulch processing, gravel and aggregate classification, recycling and waste processing, food and organic materials and environmental remediation projects involving soil and aggregate cleanup. They are typically used for primary screening rather than fine classification.
Gyratory Screening Equipment
How Gyratory Screeners Work
Gyratory screeners use a horizontal, circular motion in the plane of the screen. Unlike vibratory screeners, the motion does not throw material upward. Instead, it gently spreads the material across the screen surface and moves it toward the discharge.
The lower frequency and longer residence time allow for precise separation. Material stays on the screen longer, which increases the likelihood that particles smaller than the openings will pass through.
Some gyratory screeners use different motions along the length of the deck, such as gyration at the feed end and reciprocation at the discharge end, to improve stratification.
Advantages of Gyratory Screeners
- Very accurate, multi-deck separation for multiple size cuts in a single pass.
- Gentle, horizontal gyratory motion minimizes particle degradation and dust generation.
- Efficient use of screen area, enabling high capacity with relatively low energy and vibration transmitted to the structure.
Limitations to Note

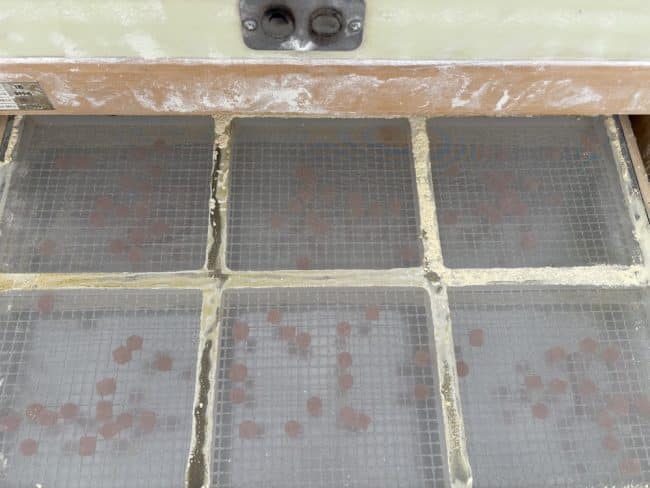

Gyratory screeners are generally more expensive than other types of industrial screening equipment and mechanically more complex. They can also be prone to blinding, especially with fine or moist material. For this reason, ball decks or other anti-blinding devices are often installed beneath the screen.
While maintenance is not necessarily difficult, it is important. Neglecting anti-blinding systems or running unsuitable material through a gyratory screener usually leads to reduced efficiency.
Typical Applications
Common applications include pharmaceuticals, fine chemicals, food powders and ingredients and specialty materials requiring tight size control.
Industrial Screening Equipment Support from M&M Milling
Remember: there is no single best screener. There is only the right screener for a specific material and process.
M&M Milling supports industrial screening needs through toll manufacturing services designed to fit real-world production requirements. This includes custom grinding and sizing services, powder processing, toll blending, bulk material conveying, transloading and contract packaging services for a wide range of materials.
If you need help with toll processing, pulverization, wet and dry grinding, powder milling or material classification, contact the M&M Milling team today.
