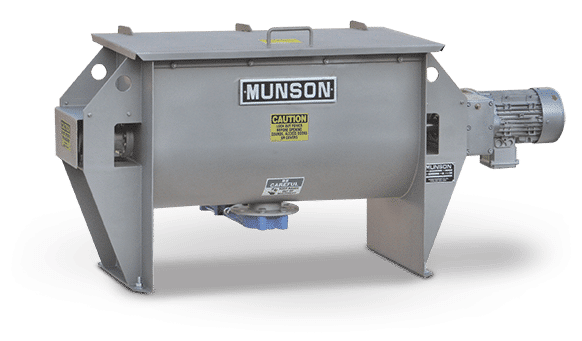

Industrial Ribbon Blender: How It Works in Powder Processing
The ribbon blender machine is one of the most common and reliable pieces of equipment used for mixing powders at scale. It’s widely used because it handles large batches consistently without adding unnecessary complexity. Keep reading to learn more.
What is a Ribbon Blender?

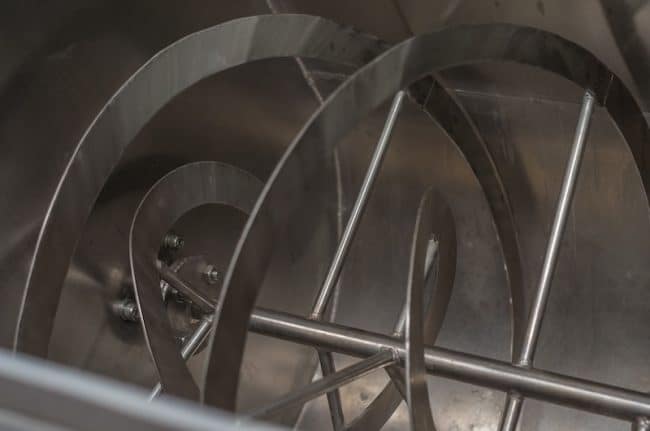

A ribbon blender mixer is a horizontal system with inner and outer helical ribbons mounted on a shaft. These ribbons move material in opposite directions to create a balanced mixing pattern.
The outer ribbon pushes material inward, while the inner ribbon moves it back outward. This counter-flow is what makes ribbon blending effective for powder mixing.
How a Ribbon Blender Machine Works
At a basic level, the ribbon blender machine works by continuously circulating material through the mixing zone.
As the shaft rotates,
- Material near the outer wall moves inward
- Material near the center moves outward
- Layers are continuously folded over each other
This creates a convective mixing pattern, which is ideal for bulk blending rather than high-shear applications.
Most industrial ribbon mixer setups run at relatively low tip speeds (around 300 ft/min or less). This creates a gentle folding action that helps preserve particle integrity.
A well-operated industrial ribbon mixer will produce a uniform blend within a predictable time range. In many cases, mixing cycles fall somewhere between a few minutes up to ~15-20 minutes, depending on batch size and formulation.
Where Ribbon Blending Works Best
Ribbon blending is best suited for applications where:
- Materials have similar particle sizes and densities
- The goal is uniform distribution (not size reduction)
- Batch processing is acceptable
For example:
- Powder blending for chemicals
- Food ingredient mixing
- Animal feed formulations
- Dry additive incorporation
A ribbon blender for powder mixing can also handle light liquid additions (like coating / absorption) as long as the addition rate is controlled. It’s not built for heavy slurry mixing without specific design changes.
Key Design Features of an Industrial Ribbon Blender
Trough Design
U-shaped troughs keep material moving and reduce dead zones.
Ribbon Configuration & Clearances
Ribbon spacing and tight wall clearances improve movement and limit buildup.
Fill Level
Most ribbon blender mixers perform best at 40-70% capacity. Below ~30%, there isn’t enough contact between the ribbons and the material. Too full and movement can become restricted.
Discharge Method
Bottom discharge valves (often plug-style) are designed to sit flush with the vessel to reduce buildup. A good discharge setup makes a big difference in how much material is left behind after a batch.
Drive System
Older systems often use belt drives, while newer ribbon blender machine designs lean toward direct gearmotor drives. The benefit is lower maintenance and better torque control over time.
Material & Process Considerations
This is where a lot of performance issues can show up if not thought through early.
Bulk Density & Motor Sizing
Batch volume determines size, but bulk density determines horsepower. Standard units are often designed around ~35 lb/ft³.
Surface Finish
Smoother finishes help reduce buildup and improve cleanability, especially for sticky / sanitary applications.
Wear Protection
Abrasive materials (ceramics, minerals, etc.) can wear down internal surfaces. Liners or hardened materials are sometimes added to extend equipment life.
Additional Options
- Variable frequency drives (VFDs) for controlled startup
- Heating/cooling jackets for temp-sensitive blending
- Nitrogen purging for combustible materials
- Sampling ports for in-process checks
Horizontal vs. Vertical Mixers
Most ribbon blender systems are horizontal, and that’s what people are usually referring to when they say ribbon blender. However you may also come across vertical mixing equipment (like cone screw mixers), which are sometimes compared to ribbon mixers.
- Horizontal ribbon blender → better for high-throughput batch mixing
- Vertical mixers → better for gentle blending or varying densities
Most operations use an industrial ribbon blender because it handles larger volumes and shorter cycle times.
Limitations to Be Aware Of
A ribbon blender mixer works well, but it’s not the right fit for everything.
- It’s not ideal for materials with very different densities.
- It has limited performance with cohesive or sticky powders.
- It’s not a high shear mixer.
- It can damage very fragile materials near the wall.
4 Useful Tips for Ribbon Blending
- Keep fill level above ~30-40%
- Don’t oversize motors without checking limits
- Use controlled startup (VFD or soft start)
- Size based on volume, not just weight
Work with M&M Milling on Ribbon Blending Projects
At M&M Milling, toll blending is part of a larger powder processing workflow. We use an industrial ribbon blender alongside milling, sizing, material handling, etc. If you’re developing a formulation, scaling up, or troubleshooting consistency, we can run your material through our system and evaluate it under real conditions.
If you’re unsure how your material will behave, testing is the fastest way to get answers. Contact us today to get started.
